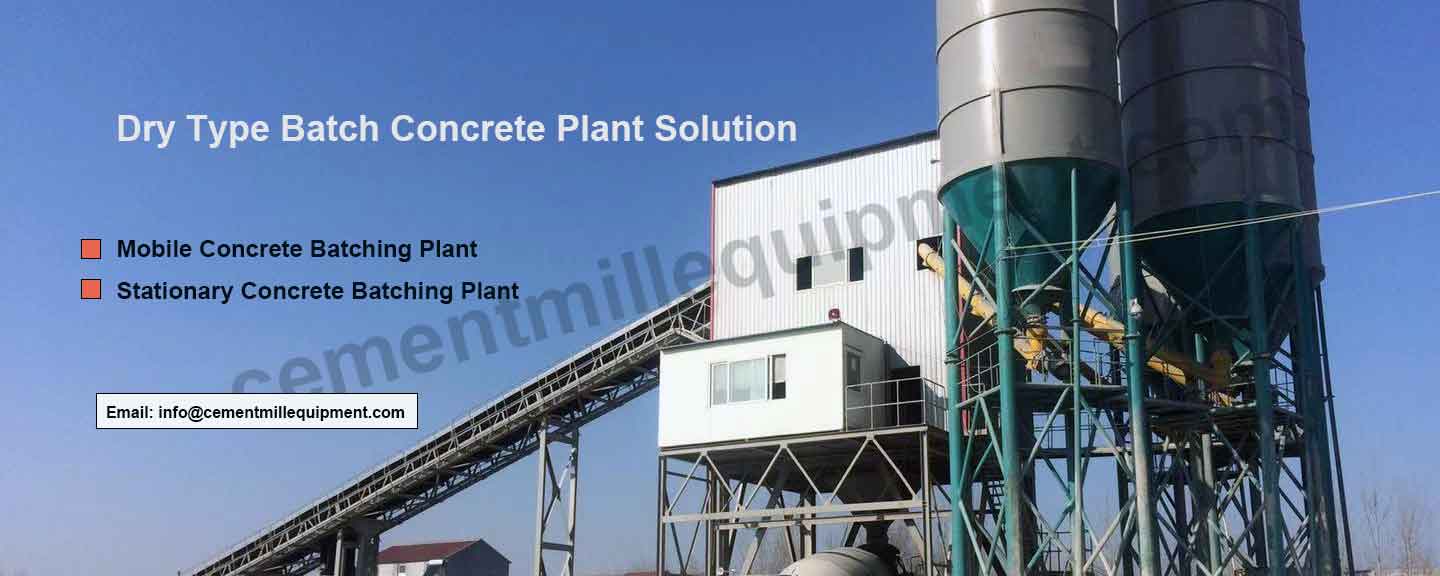

Dry Batch Concrete Plant Solution For Concrete Production

AGICO is a concrete batching plant solution provider in China, we are specialized in manufacturing and designing of 2 types of batching plant for customers, wet batching plant and dry batching plant, the dry type is also known as a dry mix concrete plant or dry batch concrete plant—is designed to proportion and discharge aggregates, cement, and additives without a built-in mixer equipment. All powder materials are accurately batched at the batcing plant and then mixed later, by a concrete truck mixer or on-site mixer. This dry batching plant solution is ideal for projects requiring high flexibility, lower initial investment, and easy relocation.

What Is a Dry Mix Concrete Batching Plant?

A dry mix concrete batching plant is featured with major functions of weighs and discharges cement, sand, aggregates, and admixtures in precise proportions, while water and final mixing process is completed outside of the batching plant. This type of batching plant setup is widely adopted in ready-mix concrete operations, infrastructure and road construction, remote or temporary job sites.
Compared with wet batching plant solution provided from AGICO, a dry batch concrete plant features a simpler configuration (no mixing equipment and process) and less maintenance works and requirements.

Typical Configuration of a Dry Batch Concrete Plant

AGICO has been offering dry mobile concrete batching plants with optimized designs for customers from Asia, Africa, America, and other countries, we will learn your requirements and help you to design and manufacture a perfect dry mobile concrete batching plant plan efficiently with low cost. A complete dry batch concrete plant is a complecated system includes a series of equipments from baching, conveying to PLC systems, which varies due to the requirements of the project, for example: for projects requiring frequent relocation or rapid installation, it’s bettter to choose the Mobile type Dry Concrete Batching Plant, for it’s modular design and compact structure can shorten the installation and dismantling time. Generally speaking, they have the following common equipments:

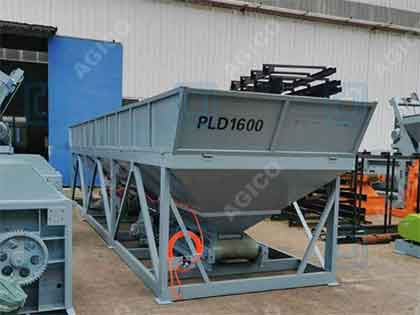

Aggregate Batching System (bins + weighing conveyor)

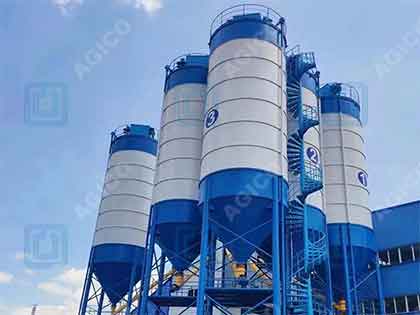

Cement Silo With Screw Conveyor

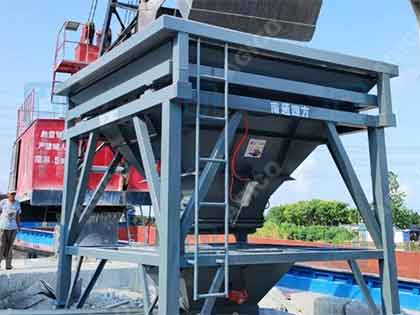

Aggregate Weighing Hopper

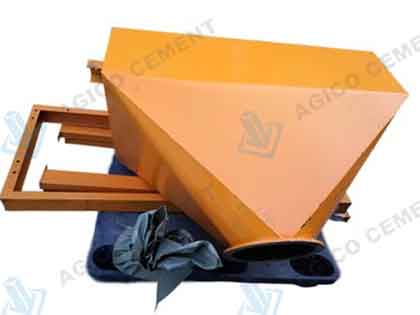

Cement Weighing Hopper

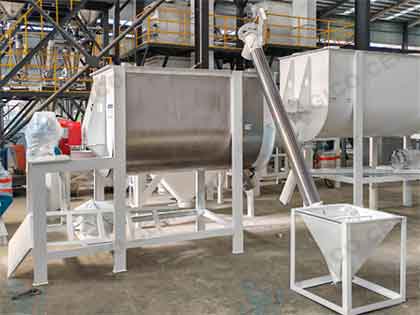

Admixture Dosing System

No central mixer is required, which significantly reduces equipment complexity and energy consumption.

Key Advantages of Dry Mobile Concrete Batching Plants:

AGICO has more than 12 years of experience in providing the concrete batching plant, and these advanced designs and advantages makes the dry mobile concrete batching plant especially suitable for construction projects for highways, bridges, and remote construction areas.

Compact and transport-friendly design
Fast installation and dismantling
Ideal for temporary or multi-site projects
Reduced civil foundation requirements

Advantages of a Dry Batch Concrete Plant

Why the dry type concrete batching plant has been used in so many applications, how can it help construction companies to do the batching job while making more profit, before you choose it as your final solution, AGICO shows you the advantages of dry batching concrete plant, Choosing a dry batch concrete plant for sale offers several engineering and economic benefits:

Lower initial investment compared with wet plants
Simplified structure and reduced maintenance
Flexible concrete production and transport
Easy integration with truck mixers
Lower power consumption

These advantages make dry batching solutions popular among batching plant contractors and ready-mix concrete suppliers seeking cost efficiency.

Limitations of Dry Concrete Batching Plant

While it’s not always suitable to choose the dry type batching solution, for it has certain limitations, such as:

Mixing quality depends on truck mixer performance
Less suitable for high-performance or special concrete
Quality control relies more on transport mixing time

For concrete batching projects requiring highly consistent or specialty concrete grade, a wet batching solution should help you to acchive a better and steady concrete production quality.

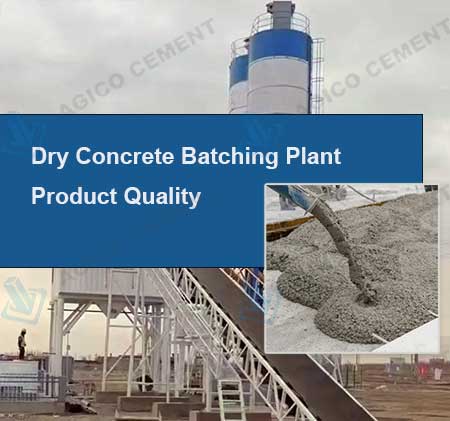

Dry Concrete Batching Plant Product Quality

Dry Batch vs. Wet Batch Concrete Plant

Item	Dry Batch Concrete Plant	Wet Batch Concrete Plant
Central Mixer	No	Yes
Mixing Location	Truck mixer / on-site	Inside plant
Initial Cost	Lower	Higher
Maintenance	Low	Higher
Best For	Ready-mix, mobile projects	Precast, high-quality concrete

Applications of Dry Batch Concrete Plant Solutions

Dry Mobile Concrete Batching Plant Application

A dry batch concrete plant solution is commonly used in ready-mix concrete production for

Road and highway construction
Bridge and infrastructure projects
Temporary construction sites
Remote areas with limited infrastructure

Dry Batch Concrete Plant for Sale – Customized Solutions

AGICO CEMENT is able to offer dry batch concrete plants for sale to you in both stationary and mobile configurations, with customizable capacities and tailored layouts to match your project requirements. For we have the most experienced engineering team intergrated with the factories specialized in manufacturing cement and concrete equipment. We can offer you dry concrete batching plant integrated with existing truck mixers and logistics systems. AGICO provide the available designs:

Stationary Dry Batch Concrete Plant Specification

Model	AG-YHZS25	AG-YHZS35	AG-YHZS50	AG-YHZS75
Capacity	25m3/h	35m3/h	50m3/h	75m3/h
Mixing system	Twin-shaft concrete mixer
Aggregate feeder	Bucket (Skip hopper)
Discharging height	1500-3800mm		3800mm	3800mm
After-sale service	Erection & commissioning, operator training
Warranty	12 months after erection
Concrete mixer	JS500	JS750	JS1000	JS1500
Discharging volume	500L	750L	1000L	1500L
Charging volume	800L	1200L	1600L	2400L
Mixing cycle	72s	72s	72s	72s
Max. mixing size	80/60mm	80/60mm	80/60mm	80/60mm
Aggregate batching machine	PLD800	PLD1200	PLD1600	PLD2400
Storage bins quantity	2 or 3 or 4 sorts	3 or 4 sorts	3 or 4 sorts	3 or 4 sorts
Aggregate scale hopper	800L	1200L	1600L	2400L
Feeding height of batching machine	1850mm-2900mm

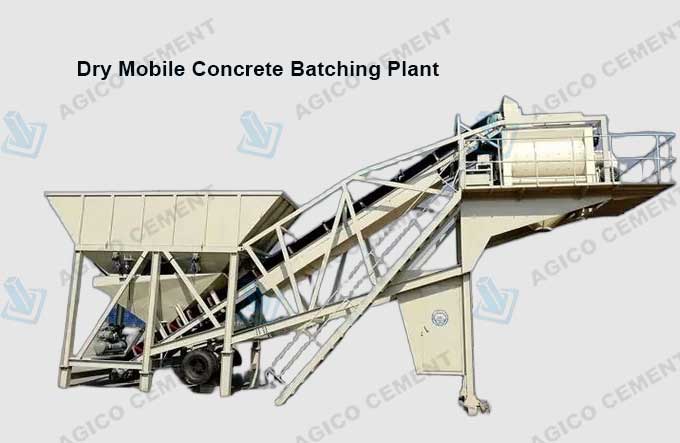

Mobile Dry Batch Concrete Plant Specification

Model	AG-HZS25	AG-HZS60	AG-HZS90	AG-HZS120
Theoretical Productivity	25m³/h	60m³/h	90m³/h	120m³/h
Mixer Model	JS500	JS1000	JS1500	JS2000
Mixer Discharging	500L	1000L	1500L	2000L
Maximum aggregate particle size	80/60 mm	80/60 mm	80/60 mm	80/60 mm
Aggregate Storage	4.5m3 x 3	7m3 x 4	15m3 x 4	15m3 × 4
Aggregate Weighing Capacity	1500L ±2%	1.5m3 × 4 ±2%	1.33m3 × 4 ±2%	1.5m3 × 4 ±2%
Powder Weighing Capacity	400L ±1%	600L ±1%	1000L ±1%	1000L ±1%
Water Weighing Capacity	200L ±1%	300L ±1%	500L ±1%	500L ±1%
Additive Weighing Capacity	15L ±1%	45L ±1%	45L ±1%	45L ±1%
Pneumatic System	Air Compressor W-1.6/10	Air Compressor W-1.6/10	Air Compressor V-2.0/10	Air Compressor V-2.0/10
Screw Conveyor Capacity	Ф219 45t/h	Ф219 45t/h	Ф273 65t/h	Ф273 65t/h
Powder Silos	50t Welded Type dust collector	100t Welded Type dust collector	100t Welded Type dust collector	200t Welded Type dust collector
Electric Control System	Full Automatic And Manual	Full Automatic And Manual	Full Automatic And Manual	Full Automatic And Manual

Get the Right Dry Batch Concrete Plant Solution

Beside the basic equipment setup for Dry Batching Plant, here are the most popular equipment integration design options for you, it can be seamlessly combined with: Truck Mixers and Cement Silos & Aggregate Storage Systems. AGICO CEMENT engineering team provides full technical support, layout design, and commissioning services. Whether you need a compact dry mobile concrete batching plant or a high-capacity dry mix concrete batching plant, AGICO CEMENT always gurrantees you with reliable delivery and cost-effective solutions tailored to your project. If you still have questions on dry batch concrete plant or wondering how to choose the right type or design, contact us and make a visit to AGICO, we will give you the detailed solution and show you our capacity.

Contact us today to get technical specifications, layout drawings, and pricing for a dry batch concrete plant solution now!.
