Vibration Ball Mill
vibration ball mill Introduction
2ZM series of two roll vibrating ball mill is a new type of efficient grinding equipment in grinding fine and super fine powder materials. To analyse and indicate the performance of the ball mill metal powder grinding , it is a new type of mill for fine grinding which combines the advantages of the vibration ball mill as well as the planetary mill. Its working principle, the influence of technical parameters on grinding and the motion of the grinding media within the mill are discussed. It is found that mechanochemical effects take place during fine grinding.
Vibrating ball mill is more convenient than conventional rotary grinding machine (efficiency of 2-5 times, reducing energy consumption by 20% - 30%). The vibration ball mill in ultra fine grinding has various vibration strength,high efficiency ,low power consumption, less noise and compact structure, convenient installation and maintenance,etc. The grinding mill falls in with popular demands.
vibration ball mill Working principle:

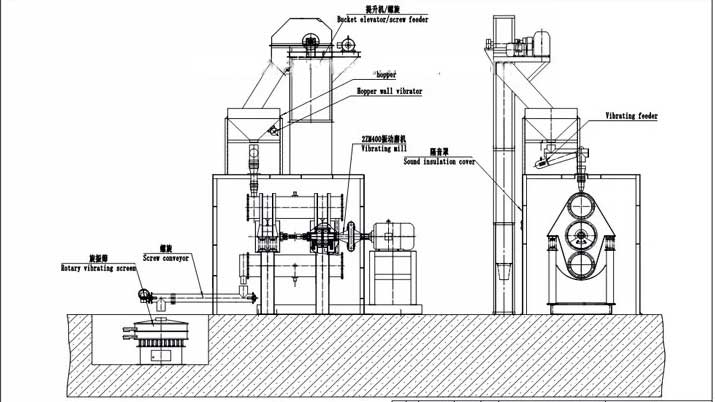

The high efficiency vibration ball mill is mainly composed of the base frame, the body frame, the acoustic enclosure, the body, the grinding cylinder, the vibrator, the lining plate, the spring support, the grinding medium and the driving motor.
Turn on the power, drive the motor through the flexible coupling to drive the vibrator to rotate, generating enough excitation force, Keep the grinding cylinder in a cyclic cyclic vibration state, The vibration force is continuously transmitted to the entire material in the grinding drum, The milled material is finely ground by mutual impact between the drum medium and the material.
2 roll vibration ball mill technical parameter
| Model | 2ZM-100 | 2ZM-200 | 2ZM-400 | 2ZM-600 | 2ZM-800 | 2ZM-1000 | 2ZM-1200 | 3ZM-2000L |
| Roller number | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 |
|
Roller Volume(L) |
100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 200 |
| Grinding way | Dry ,wet ,open and close barite grinding mill | |||||||
|
Feeding size (mm) |
0-25 | |||||||
| Discharging size(mm) | 0.3-0.074 | |||||||
| Amplitude (mm) | 10-14 | 10-14 | 8-13 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 |
|
Vibration frequency (r/min) |
980 | 980 | 980 | 980 | 980 | 980 | 980 | 980 |
| Capacity(t/h) | 0.6-1.3 | 0.75-2.5 | 0.8-4.8 | 1-8 | 1-10 | 1-10 | 1-16 | 1-40 |
|
Motor power (kw) |
17-22 | 22-37 | 45-55 | 45 | 55-75 | 75 | 75-90 | 135 |
| Size(L*W*H)M | 2.5*0.85*1.5 | 2.8*1*1.8 | 3.2*1.1*1.9 | 3.4*1.5*2.2 | 3.4*1.6*2.2 | 3.8*1.6*2.3 | 5*1.7*2.5 | 7*1.7*2.35 |
| Weight(t) | 2.6 | 3.5 | 4.8 | 6.2 | 9.2 | 11 | 14 | 20 |
