Twin Shaft Concrete Mixer

How does Twin Shaft Concrete Mixer Work

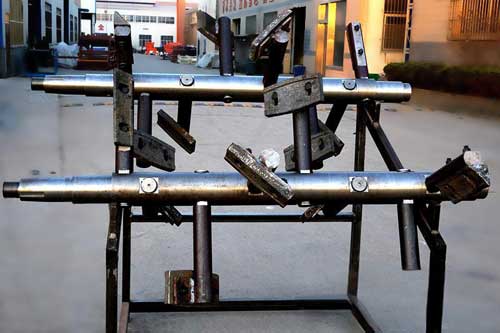

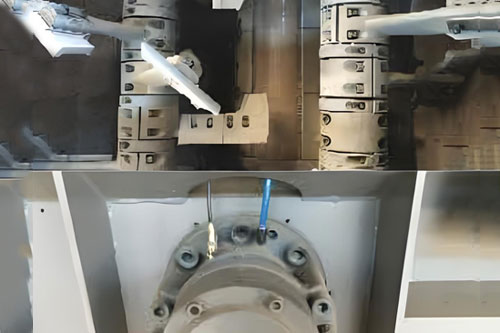

The twin-shaft compulsory concrete mixer has always been the preferred choice for the main machine used to produce standard commercial concrete, It adopts a double-shaft design, with a set of mixing blades installed on the shaft. The blades are staggered front, back, and up and down to form a multi-angle mixing track. The mixer machine rotates the 2 mixing shafts in opposite directions to make the materials repeatedly tumble, squeeze and mix in the drum, achieving an efficient and uniform mixing effect.

The Twin-shaft Concrete Mixer Feature and Application
The twin-shaft concrete mixer is characterized by high production efficiency, energy saving, environmental protection and mature technology, You can have the same technical and quality level at a reasonable price. The concrete is produced with stable quality under strictly controlled production process. It can meet various strength grades and engineering requirements, making it widely used in automated production lines for large quantities of commercial concrete.

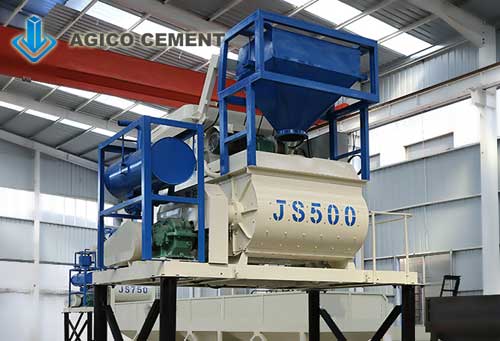

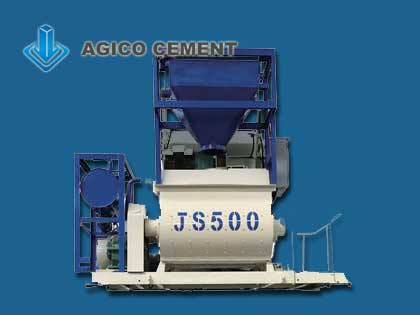

JS500 Concrete Mixer Introduction

JS500 compulsory concrete mixer discharges 0.5 cubic meters’ of concrete each time, it’s also called 0.5 cubic meters concrete mixer, with a productivity of 25m³/h. It is mostly used as the mixer of HZS-25 batching plant. It can be operated independently or integrated into a simple concrete mixing station with PLD concrete batching machine.

JS500 concrete mixer adopts an automatic discharging mode. It has convenient water addition control, strong power, low power consumption, strong power, and a built-in vortex mixer to prevent materials from agglomerating in the warehouse.

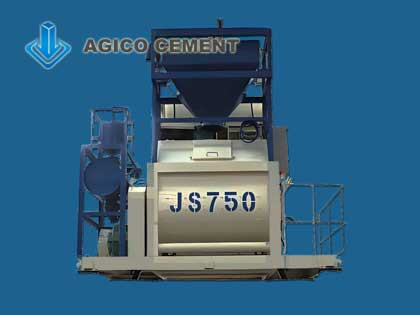

JS750 Concrete Mixer Introduction

JS750 concrete mixer discharges 0.75 cubic meters each time, also known as 0.75 cubic meter concrete mixer. It is usually used as the mixer of small concrete batching plant of HZS35.
JS750 mixer can meet the requirements of different users. For example, there are 3 optional unloading heights: 1.6m, 2.7m, and 3.8m. Users can also use it with their own dump truck or concrete mixer truck. The 1.6m unloading height can be directly matched with a concrete pump.

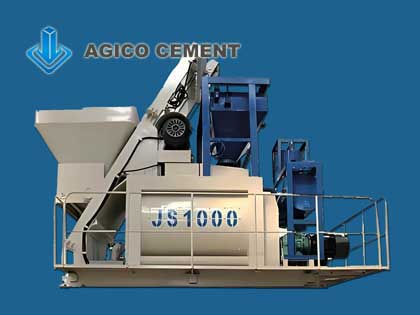

JS1000 Concrete Mixer Introduction

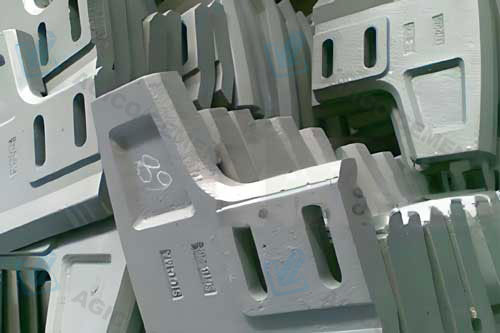

JS1000 concrete mixer, or 1 cubic mixer, is a twin shaft mixer with a theoretical productivity of 60m³/h. It has the advantages of high automation, good mixing quality, high efficiency, low energy consumption, low noise, easy operation, fast unloading speed, long service life of lining and blades, and convenient maintenance.

JS1000 concrete mixer is suitable for mixing dry hard concrete, fluid concrete, light aggregate concrete and various mortars in various prefabricated component factories, industrial and civil construction departments (water conservancy, roads, bridges, etc). It can work independently or be combined with batching machines to form a stationary concrete batching plant.

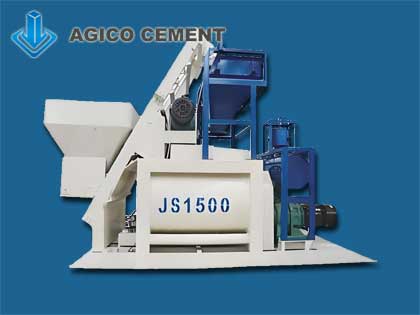

JS1500 Concrete Mixer Introduction

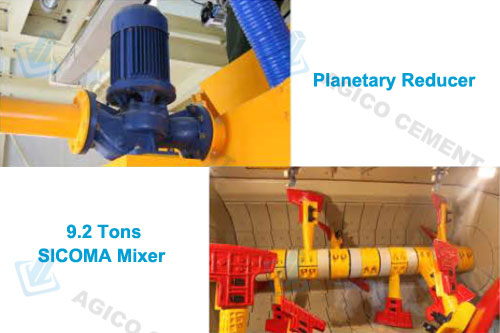

JS1500 concrete mixer discharges 1.5 cubic meters each time, also known as 1.5 cubic meter forced mixer. It is a high-efficiency forced mixer based on the characteristics of Sicoma forced mixer and combined with the experiences of concrete mixers used by domestic users. In addition to single-machine operation, JS1500 concrete mixer can also be combined with PLD1600 batching machine to form a concrete batching plant, such as HZS75 model or HZS90 model.

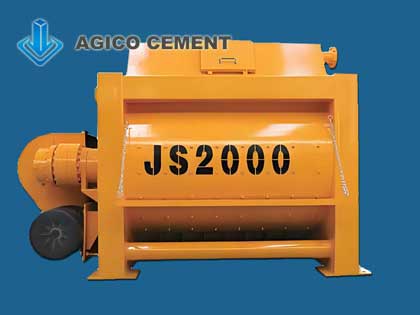

JS2000 Concrete Mixer Introduction

JS2000 concrete mixer discharges 2 cubic meters each time, also known as 2 cubic meter concrete mixer. The discharging cycle of this machine is 60S, and it is usually used as the main mixer of HZS120 concrete batching plant.

JS2000 concrete mixer is one of the most preferred construction equipment models. It has the advantages of high degree automation, good mixing quality, high efficiency, low energy consumption, low noise, easy operation, fast unloading speed, long service life of lining and blades, and easy maintenance.

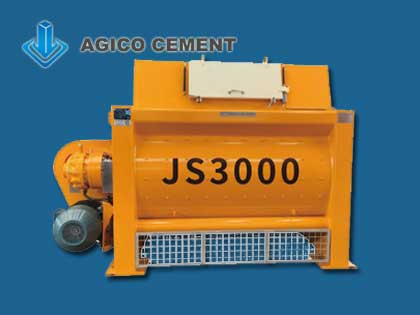

JS3000 Concrete Mixer Introduction

JS3000 concrete mixer is a compulsory double-shaft concrete mixer, that works as a commonly used mixing equipment in construction projects. Its discharge capacity is 3m³ each time, with a cycle period of 60S. It can be used as the host of a  HZS180 concrete batching plant.

JS3000 concrete mixer is a large-scale model, that provides a matching host, has uniform mixing, simple structure, reliable operation and easy maintenance.
