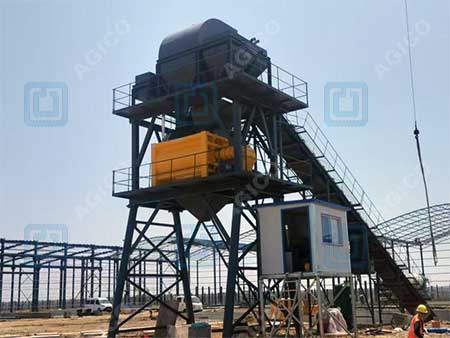

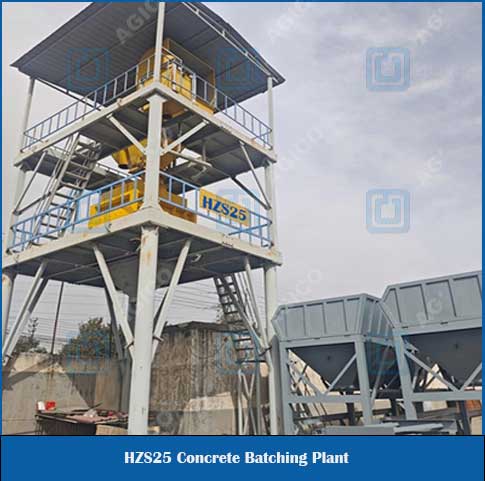

HZS25 Concrete Batching Plant

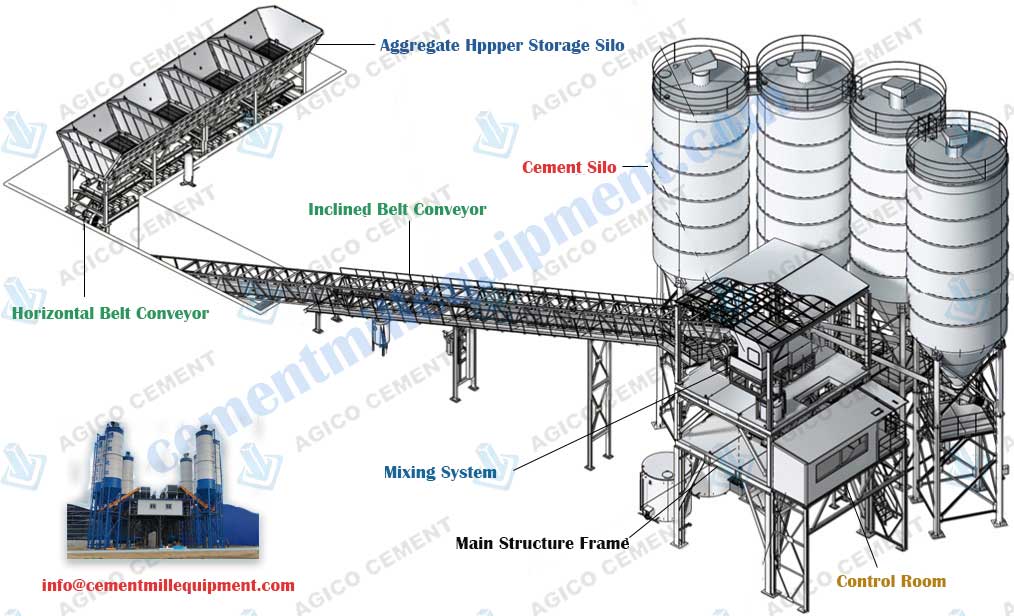

The technical specifications of HZS concrete batching plant series varies due to the requirement of customers and manufacturer, the basic set up of HZS25 concrete batching plant is as follows:

• Theoretical Output: 25 m³/h
• Overall Dimensions: 11693 × 13060 × 17245 mm
• Mixer Model: JS500 Twin-Shaft Mixer
• Batching Machine Model: PLD1200
• Total Installed Power: 52 kW
• Standard Discharge Height: 1.5 – 3.8 m

Application: The HZS25 concrete batching plant is suitable for small to medium-sized precast concrete factories, highway and bridge construction, water conservancy and hydropower projects, port, dock, and municipal engineering, general industrial and civil construction works

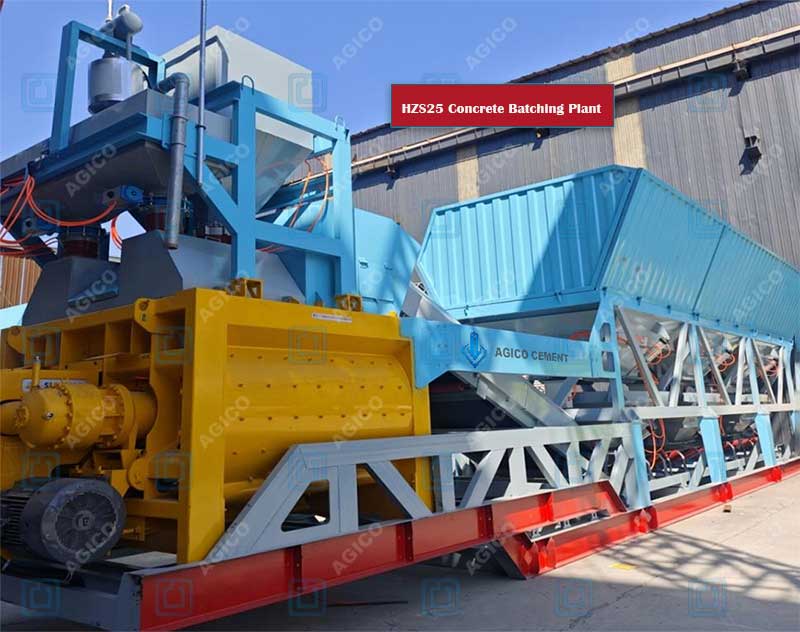

HZS25 Concrete batching plant supplied by AGICO are equiped with high-efficiency concrete mixer with excellent mixing performance, its liners and blades made of high-chromium wear-resistant cast iron; mixing blade angles are optimized for fast and uniform mixing, it has the advantages of short mixing time, low wear, and easy maintenance, here are the details:

• High Production Efficiency:the HZS25 concrete batching plant supplied by AGICO can efficiently produce plastic concrete, dry concrete, and semi-dry concrete, ensuring fast mixing cycles and stable output.
• Superior Mixing Quality: Key components of concrete mixer such as mixing arms, blades, liners, and main shafts are manufactured using high-quality domestic and international steel materials, ensuring long service life of the equipment and uniform concrete mixing effect.
• High Weighing Accuracy: The same as other concrete batching plant, it adopts electronic weighing, microcomputer control, and digital display technology.
  Our weighing systems are equipped with buffering and automatic compensation functions, guaranteeing high measuring accuracy and stable performance.
• Low Dust Emission: This series of concrete batching plant have environmental-friendly design, a pulse-type electric dust collector with a large filtration area is used, effectively reducing dust emissions and meeting environmental protection requirements.
• Low Noise Operation: The discharge gate is controlled by a hydraulic oil pump with multiple stopping positions and manual override.

For HZS25 Concrete batching plant, the entire batching, mixing, and discharging process operates in a fully enclosed environment, significantly reducing noise pollution.

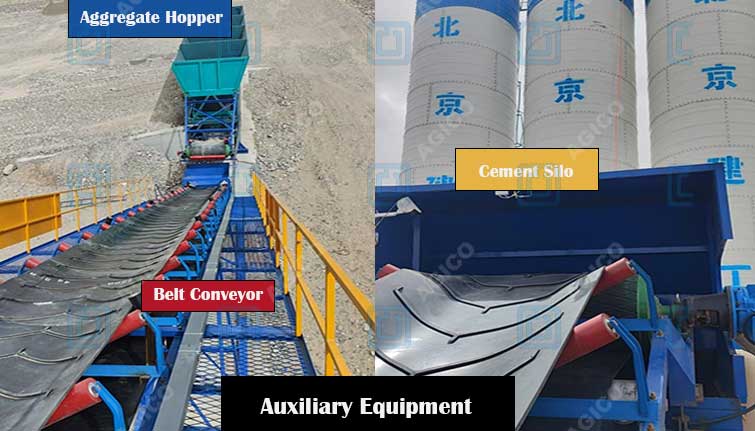

• Cement Silo-Storage System: As the capacity of HZS25 model is small, so is the size of cement silo, which is used for bulk cement storage, our silo offers: waterproof and moisture-proof design, minimal environmental pollution, small footprint and long service life, low civil construction cost.
• Conveying System: There are 2 types of conveying system as options for customer: bucket hoist is featured with high lifting height, stable operation, compact layout; screw conveyor are made of high-strength steel pipe, double-pitch spiral blades for reduced material compression, heavy-duty gearbox with low noise, our conveying systems featured with optional universal joint for flexible installation.
• Control System: The control system of HZS concrete batching plant serves as the central operation unit of the batching plant, it has 2 basic mode: automatic and manual operation modes, user-friendly interface, the control system can be classified into dynamic panel display for real-time monitoring
  Amd data storage and report printing functions
• Weighing System: The weighing system of batching plant is featured with high-precision imported load cells, it has fast features of low response and stable weighing and pneumatic butterfly valves with reliable sealing.
• Pneumatic System: The pneumatic system of concrete batching plant may executes control commands to open and close aggregate bins, control mixer discharge gates, and prevent cement arching in silos, finally ensure accurate dosing and smooth material flow.
